Callback

Overview

Callback or Webhook is a mechanism that automatically notifies merchants of events related to Zalopay transactions. Third-party users and developers can manage these callbacks. They are user-defined HTTP callbacks that allow two independent online applications to communicate.

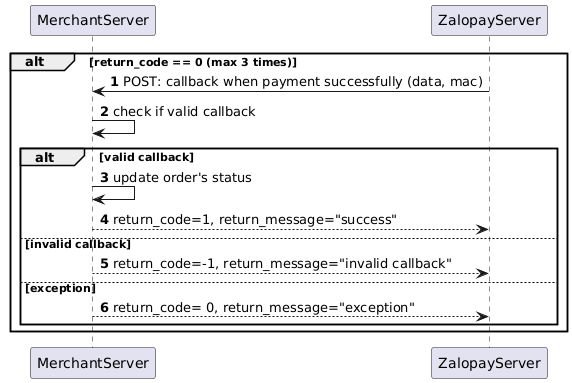

Flow

When a certain transaction is successful:

Zalopay Server will notify to Merchant Server via Callback URL which was previously registered e.g. via createOrder API.
Merchant Server uses key2 (provided by Zalopay) to validate callback data.
Merchant can check the callback log in the Sandbox environment on Merchant Portal

Request

Your callback endpoints should be accessible by Zalopay Server.

Method: POST
Content-Type: application/json

The endpoint should accept data with the following schema (apply for all products):

Params	Data type	Description
data	Json String	The callback data. The format may vary depending on the specific product.
mac	string	Confirmation of order information, using key2 (had been provided) to verify the order
type	int	Callback type - `type=1`: Order - `type=2`: Agreement

The callback data for the specified product is presented as follows:

Order callback data

Params	Data type	Description
app_id	Int	Order's app_id
app_trans_id	String	Order's app_trans_id
app_time	Int64	Order's app_time
app_user	String	Order's app_user
amount	Int64	Amount received (VND)
embed_data	Json String	Order's embed_data. For example: `{"promotioninfo":"","merchantinfo":"merchant-defined data"}`
item	Json Array	Order's item. For example: `[{"itemid":"knb","itename":"plantA","itemprice":198400,"itemquantity":1}]`
zp_trans_id	Int64	Zalopay's Transaction code
server_time	Int64	Zalopay's Transaction time (unix timestamp in milliseconds)'
channel	Int	Payment channels.
merchant_user_id	String	Zalopay user, who paid for the order
user_fee_amount	Int64	Fee (VND)
discount_amount	Int64	Discount (VND)

Example:

{
  "data": "{\"app_id\":2638,\"app_trans_id\":\"230407_13583500399\",\"app_time\":1680850715576,\"app_user\":\"Zalopay\",\"amount\":50000,\"embed_data\":\"{}\",\"item\":\"[]\",\"zp_trans_id\":230407000006575,\"server_time\":1680850894407,\"channel\":38,\"merchant_user_id\":\"Bs8KJXf2GKyfVv_fnxG7IwG5VbQ8H_qGsOUW2UJAJSM\",\"zp_user_id\":\"Bs8KJXf2GKyfVv_fnxG7IwG5VbQ8H_qGsOUW2UJAJSM\",\"user_fee_amount\":0,\"discount_amount\":0}",
  "mac": "761c9be42fd419b7078e4cf42e5034238ced266b2e094bfd4ce242f99e61b172",
  "type": 1
}

Tokenization/Agreement callback data

The callback data encompasses details regarding confirmed or updated agreements.

Params	Data type	Description
app_id	Int	The app id of the merchant.
app_trans_id	String	The merchant's unique id for the binding.
binding_id	String	The id of binding has been confirmed in the Zalopay system.
pay_token	String	The public token is used when doing auto-debit.
server_time	Int	Server timestamp in seconds.
merchant_user_id	String	The identifier field in bind request.
status	Int	Type of message: 1: The user confirms an agreement 2: The user updates the agreement
msg_type	Int	1: Success, otherwise fail
zp_user_id	String	The identifier of Zalopay user per merchant app_id.
masked_user_phone	String	Masked user phone (Ex: masked_user_phone: "****6938").

Example:

{
  "data": "{\"app_id\":2638,\"app_trans_id\":\"230407_13221300383\",\"binding_id\":\"230407qQe7vGnqp0agyforLAy0D2b1x3\",\"pay_token\":\"NJLHNTRLZDETZGQYZI0ZNTBKLTGWZJKTMTKXYJHLMWI5NTFI\",\"merchant_user_id\":\"84903863801\",\"zp_user_id\":\"Bs8KJXf2GKyfVv_fnxG7IwG5VbQ8H_qGsOUW2UJAJSM\",\"masked_user_phone\":\"****3801\",\"server_time\":1680848564,\"status\":1,\"msg_type\":1,\"expiry_timestamp_in_ms\":1996467763977}",
  "mac": "bed74dc38e023d7402297107e1e518b16731d1689ebf77120872e12d9e36882a",
  "type": 2
}

ZOD callback data

Params	Data type	Description
appId	String	The app identifier is provided by Zalopay.
mcRefId	String	The merchant order's reference ID.
amount	Int	Amount of order.
zpTransId	Int	The Zalopay transaction id.
serverTime	Int	Server timestamp in seconds.
channel	Int	Payment channels.
zpUserId	String	The identifier of Zalopay user per merchant.
userFeeAmount	Int	Fee amount.
discountAmount	Int	Discount amount.
userChargeAmount	Int	Amount charged from user.

Example:

{
  "data": "{\"appId\":\"15011\",\"mcRefId\":\"LZD201230_23423453\",\"amount\":30000,\"zpTransId\":210126000000814,\"serverTime\":1611633042737,\"channel\":38,\"zpUserId\":\"200601589000506\",\"userFeeAmount\":0,\"discountAmount\":0,\"userChargeAmount\":30000}",
  "mac": "dd163f1bc82a92eb8c9619337f47298fee0c95b1c764767ad18f358f0e8120a9",
  "type": 1
}

Response

Params	Data type	Description
return_code	Int	1: Success 2: Failed
return_message	String	Description of return code

For the ZOD product, the expected response format should be as follows:

Params	Data type	Description
returnCode	Int	1: Success 2: Failed
returnMessage	String	Description of return code

Implementation

Validation

Your callback URLs can be susceptible from hacker attacks. It's a must for you to validate if a callback is valid with HMAC.

reqmac = HMAC(hmac_algorithm, key2, callback_data.data);
if (reqmac == callback_data.mac) {
  // valid callback
} else {
  // invalid callback
}

in which:

hmac_algorithm: is a security method registered by Merchant with Zalopay, the default is HmacSHA256
key2: provided by Zalopay at registration
callback_data: is data requested by Zalopay to Merchant's callback API when Zalopay has successfully collected money from customers.

Examples

NodeJs
Python
Go

// Node v10.15.3
const CryptoJS = require("crypto-js"); // npm install crypto-js
const express = require("express"); // npm install express
const bodyParser = require("body-parser"); // npm install body-parser
const app = express();

const config = {
  key2: "eG4r0GcoNtRGbO8",
};

app.use(bodyParser.json());

app.post("/callback", (req, res) => {
  let result = {};

  try {
    let dataStr = req.body.data;
    let reqMac = req.body.mac;

    let mac = CryptoJS.HmacSHA256(dataStr, config.key2).toString();
    console.log("mac =", mac);

    // check if the callback is valid (from Zalopay server)
    if (reqMac !== mac) {
      // callback is invalid
      result.return_code = -1;
      result.return_message = "mac not equal";
    } else {
      // payment success
      // merchant update status for order's status
      let dataJson = JSON.parse(dataStr, config.key2);
      console.log(
        "update order's status = success where app_trans_id =",
        dataJson["app_trans_id"]
      );

      result.return_code = 1;
      result.return_message = "success";
    }
  } catch (ex) {
    result.return_code = 0; // callback again (up to 3 times)
    result.return_message = ex.message;
  }

  // returns the result for Zalopay server
  res.json(result);
});

app.listen(8888, function () {
  console.log("Server is listening at port :8888");
});

# coding=utf-8
# Python 3.6

from flask import Flask, request, json # pip3 install Flask
import hmac, hashlib

app = Flask(__name__)
config = {
  'key2': 'eG4r0GcoNtRGbO8'
}

@app.route('/callback', methods=['POST'])
def callback():
  result = {}

  try
    cbdata = request.json
    mac = hmac.new(config['key2'].encode(), cbdata['data'].encode(), hashlib.sha256).hexdigest()

    # check if the callback is valid (from Zalopay server)
    if mac != cbdata['mac']:
      # callback is invalid
      result['return_code'] = -1
      result['return_message'] = 'mac not equal'
    else:
      # payment success
      # merchant update status for order's status
      data_json = json.loads(cbdata['data'])
      print("update order's status = success where app_trans_id = " + data_json['app_trans_id'])

      result['return_code'] = 1
      result['return_message'] = 'success'
  except Exception as e
    result['return_code'] = 0 # callback again (up to 3 times)
    result['e'] = str(e)

  # returns the result for Zalopay server
  return json.jsonify(result)

// go version go1.11.1 linux/amd64
package main

import (
    "encoding/json"
    "fmt"
    "log"
    "net/http"

    "github.com/zpmep/hmacutil"
)

// App config
var (
    key2 = "eG4r0GcoNtRGbO8"
)

func main() {
    mux := http.DefaultServeMux
    mux.HandleFunc("/callback", func(w http.ResponseWriter, r *http.Request) {
        defer r.Body.Close()
        var cbdata map[string]interface{}
        decoder := json.NewDecoder(r.Body)
        decoder.Decode(&cbdata)

        requestMac := cbdata["mac"].(string)
        dataStr := cbdata["data"].(string)
        mac := hmacutil.HexStringEncode(hmacutil.SHA256, key2, dataStr)
        log.Println("mac =", mac)

        result := make(map[string]interface{})

        // check if the callback is valid (from Zalopay server)
        if mac != requestMac {
            // callback is invalid
            result["return_code"] = -1
            result["return_message"] = "mac not equal"
        } else {
            // payment success
            result["return_code"] = 1
            result["return_message"] = "success"

            // merchant update status for order's status
            var dataJSON map[string]interface{}
            json.Unmarshal([]byte(dataStr), &dataJSON)
            log.Println("update order's status = success where app_trans_id =", dataJSON["app_trans_id"])
        }

        // returns the result for Zalopay server
        resultJSON, _ := json.Marshal(result)
        fmt.Fprintf(w, "%s", resultJSON)
    })

    log.Println("Server is listening at port :8888")
    http.ListenAndServe(":8888", mux)
}

For other examples, please navigate to https://github.com/orgs/Zalopay-samples/repositories

Recommendation

Retry

Due to technical issues such as network timeout or your service unavailability, Zalopay may not be able to notify you via the callback. After 15 minutes from the time of the order establishment, if you still do not receive a callback from Zalopay, the merchant needs to call QueryOrder API proactively to get the final result.

Idempotence

Callback endpoints may receive duplicate events, which can cause issues if the events are processed multiple times. To ensure that these duplicate events don't cause problems, it's important to make the event processing idempotent. This means that processing the same event multiple times should have the same result as processing it just once. One way to achieve this is by tracking the events that have been processed and avoiding reprocessing events that have already been tracked.

Using HTTPS

By using an HTTPS URL for your callback endpoint, you can ensure that the connection between the client and server is secure and encrypted, providing protection against potential security threats. With HTTPS, data transmitted between the server and client is encrypted, preventing attackers from intercepting and reading sensitive information.

CSRF protection

Web frameworks such as Rails, Django, or others may automatically verify that each POST request includes a CSRF token to safeguard against cross-site request forgery attempts. Although this is a crucial security feature to protect both you and your users, it may hinder the processing of valid events on your website. In such cases, you may have to exclude the callback route from CSRF protection.

For example with Express.js:

const express = require("express");
const cookieParser = require("cookie-parser");
const csrf = require("csurf");
const app = express();

// Set up middleware
app.use(express.urlencoded({ extended: false }));
app.use(cookieParser());

const protectCSRF = csrf({ cookie: true });

// Set up CSRF protection, excluding your callback path
app.use((req, res, next) => {
  if (req.url === "your_callback_path") {
    next();
  } else {
    protectCSRF(req, res, next);
  }
});

// Do some action to create csrf token and attach to the cookie here

app.listen(8080);

Others

Payment channels

Value	Payment channel
36	Visa/Master/JCB
37	Bank Account
38	Zalopay Wallet
39	ATM
41	Visa/Master Debit
